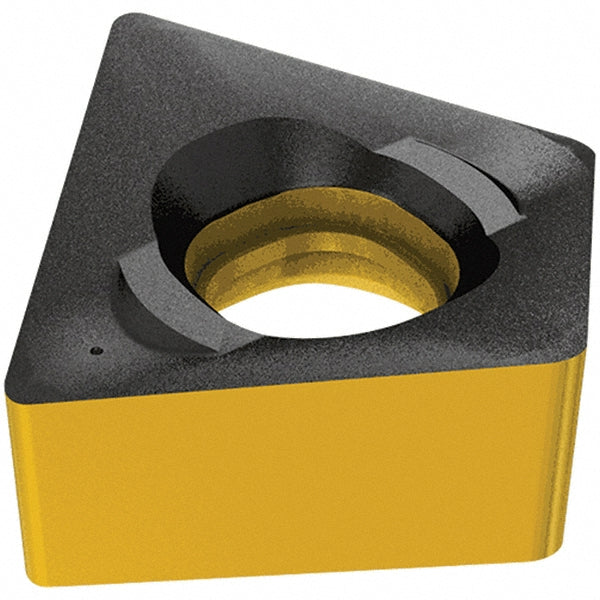

XNMU 130608PNN-MM Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5607637
MFR# 5607637ISO/ANSI# XNMU 130608PNN-MMCat# XNMU 130608PNN-MM IC808Series HELISLOT
$23.27List $29.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5607637 is a XNMU 130608PNN-MM solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeXNMU 130608PNN-MM IC808
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityETS-XN13; FDN-XN13; SDN-XN13; SM-XN13
Cutting edge effective length0.4803
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.5120
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code130608
Insert styleXNMU
Iso codeXNMU 130608PNN-MM
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberXNMU 130608PNN-MM IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.4803
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.3350
Thickness range0.2500 to 0.3500
Width0.5120
