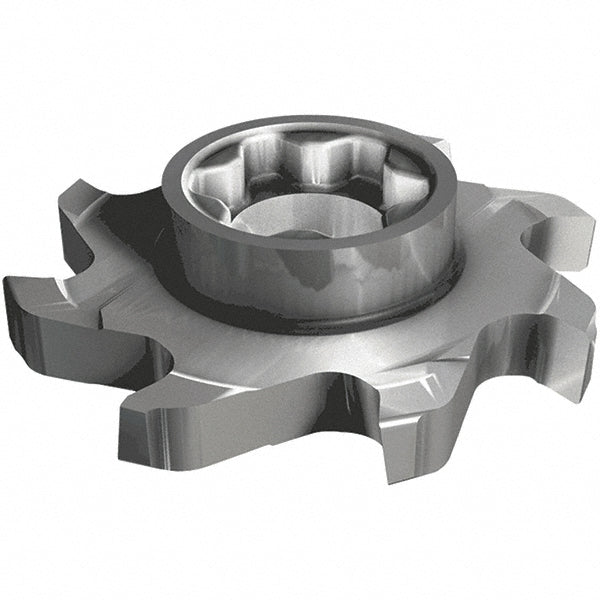

Carbide Insert, Grade IC908, TiAlN - Iscar 5607646

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5607646

MFR# 5607646Series SD-SP

$154.76List $198.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes8
GradeIC908
CoatingTiAlN

Description

The Iscar 5607646 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0160
Cutting diameter1.2380
Cutting width0.1870in
Extension from holder in0.3150
Functional length0.3150
Included angle degree90
Insert handRight Hand
Insert sizeD1.25-H187D
Lead angle90
Length of cut0.3150in
Manufacturers catalog number5607646
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3150
Milling tip full descriptionSD D1.25-H187D-SP15
Milling tip styleSD-SP
Milling tip typeT-Slot
Number of flutes8
Overall length0.3150in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
