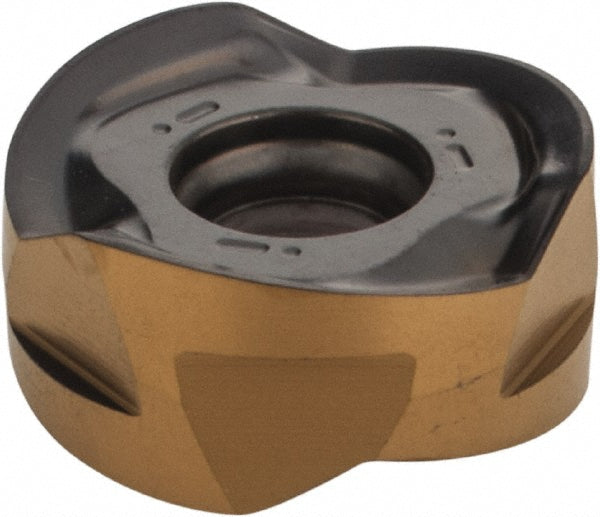

H606 RXCU 43-AXT Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607685

MFR# 5607685ISO/ANSI# H606 RXCU 43-AXTCat# H606 RXCU 43-AXT IC830Series HELIDO

$28.26List $36.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5607685 is a H606 RXCU 43-AXT solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH606 RXCU 43-AXT IC830
Chip breakerAXT
Coating finishAlTiN
Coating processPVD
Corner radius in1/4
Cutter series compatibilityH606 FR.50
Cutting edge effective length0.5100
Cutting edge styleT-Land
Included angle degree360
Inscribed circle0.5100
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size43
Insert size code43
Insert styleRXCU
Iso codeH606 RXCU 43-AXT
Length0.5100
Length range0.5000 to 0.6000
Manufacturers catalog numberH606 RXCU 43-AXT IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2550
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.5100
