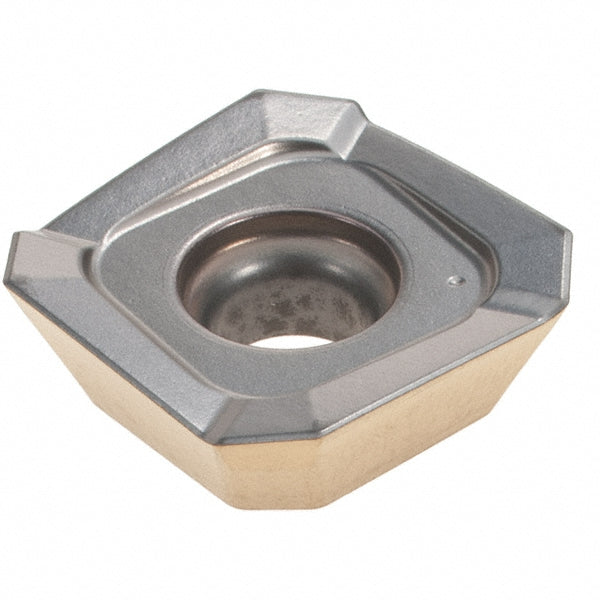

SEMT 140405ATR Solid Carbide Insert, Grade IC330, TiCN - Iscar 5607692

Iscar

SEMT 140405ATR Solid Carbide Insert, Grade IC330, TiCN - Iscar 5607692

MFR# 5607692ISO/ANSI# SEMT 140405ATRCat# SEMT 140405ATR IC330Series HELIOCTO

$23.93List $30.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC330
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5607692 is a SEMT 140405ATR solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSEMT 140405ATR IC330
Chip breakerATR
Coating finishTiCN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHOF-R06; HOE-R06
Cutting edge effective length0.5394
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.5590
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140405
Insert styleSEMT
Iso codeSEMT 140405ATR
Length0.5591
Length range0.5000 to 0.6000
Manufacturers catalog numberSEMT 140405ATR IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2170
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1950
Thickness range0.1850 to 0.2000
Width0.5591
