Iscar

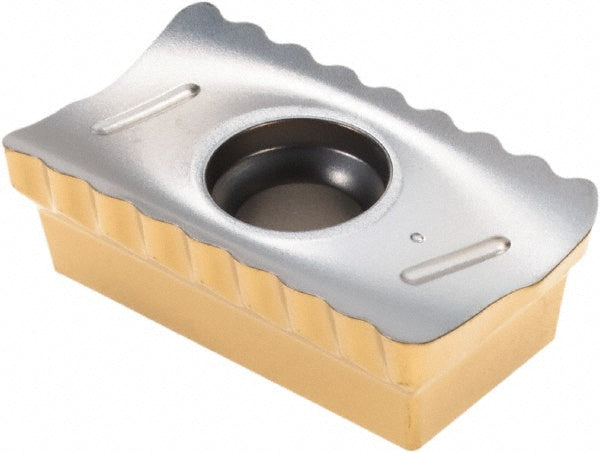

P290 ACKT 1806PDR-FWE Solid Carbide Insert, Grade IC380, TiCN - Iscar 5607696
MFR# 5607696ISO/ANSI# P290 ACKT 1806PDR-FWECat# P290 ACKT 1806PDR-FWE IC380Series MILLSHRED
$30.28List $38.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC380
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5607696 is a P290 ACKT 1806PDR-FWE solid carbide indexable insert, grade IC380, TiCN coated. Suited for superalloys & titanium, hard material.
Specifications
Ansi codeP290 ACKT 1806PDR-FWE IC380
Chip breakerFWE
Coating finishTiCN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityP290
Cutting edge effective length0.7090
Cutting edge styleSegmented
Included angle degree85
Inscribed circle0.4210
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1806
Insert styleACKT
Iso codeP290 ACKT 1806PDR-FWE
Length0.7280
Length range0.7000 to 0.9000
Manufacturers catalog numberP290 ACKT 1806PDR-FWE IC380
Manufacturer gradeIC380
Material applicationSuperalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.7090
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.4210
