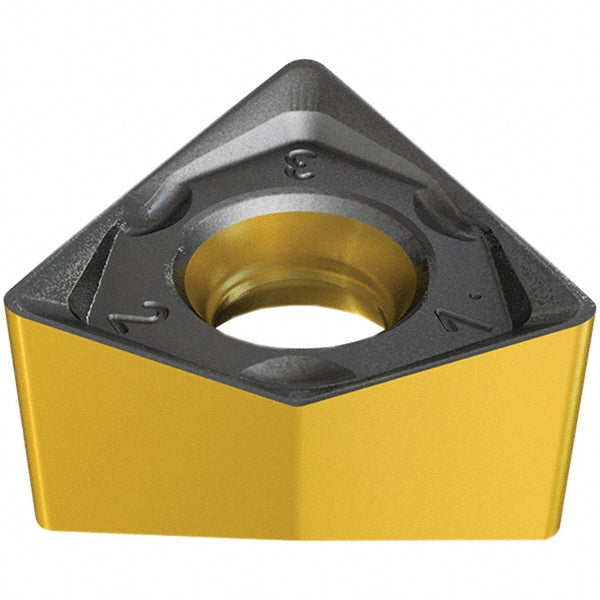

H690 WNMU 0705PNR-MM Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5607702

Iscar

H690 WNMU 0705PNR-MM Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5607702

MFR# 5607702ISO/ANSI# H690 WNMU 0705PNR-MMCat# H690 WNMU 0705PNR-MM IC808Series HELIDO

$27.10List $34.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC29/64
ShapeTrigon
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5607702 is a H690 WNMU 0705PNR-MM solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeH690 WNMU 0705PNR-MM IC808
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityH690-07
Cutting edge effective length0.2760
Cutting edge styleChamfered; Honed
Included angle degree60
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size07
Insert size code0705
Insert styleWNMU
Iso codeH690 WNMU 0705PNR-MM
Length in29/64
Length range0.4500 to 0.5000
Manufacturers catalog numberH690 WNMU 0705PNR-MM IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2760
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2320
Thickness range0.2200 to 0.2350
Width in29/64
