Carbide Insert, Grade IC908, TiAlN - Iscar 5607710

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5607710

MFR# 5607710Series MM ECD

$78.78List $100.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

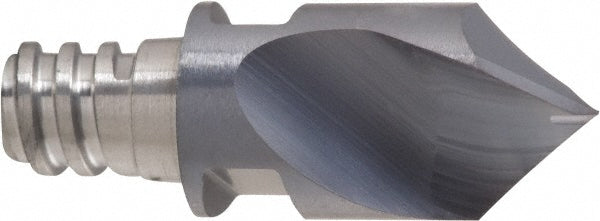

The Iscar 5607710 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3152
Cutting width0.3152in
Extension from holder in0.5906
Functional length0.5910
Included angle degree90
Insert handRight Hand
Insert size08X90
Lead angle45
Manufacturers catalog number5607710
Manufacturer gradeIC908
Material gradeSub Micrograin
Milling tip full descriptionMM ECD-08X90-2T05
Milling tip styleMM ECD
Milling tip typeSpotting Drill
Number of flutes2
Overall length0.5910in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
