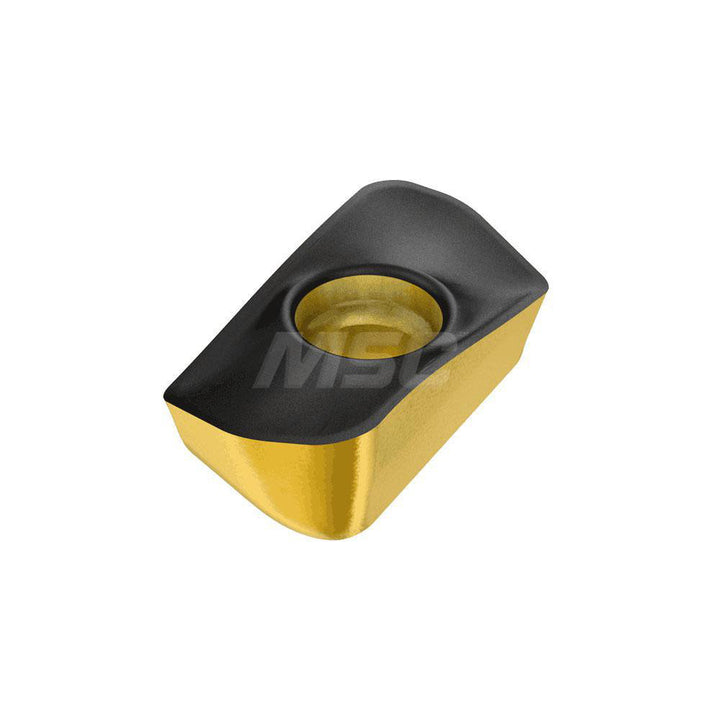

HP ANKT 0702R12T-FF Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607713

Iscar

HP ANKT 0702R12T-FF Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607713

MFR# 5607713ISO/ANSI# HP ANKT 0702R12T-FFCat# HP ANKT 0702R12T-FF IC830Series HELIPLUS

$21.16List $27.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5607713 is a HP ANKT 0702R12T-FF solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHP ANKT 0702R12T-FF IC830
Chip breakerFF
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityHP ANK-07; HP.90-07
Cutting edge effective length0.3030
Cutting edge styleT-Land
Included angle degree85
Inscribed circle0.1730
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code0702R12
Insert styleANKT
Iso codeHP ANKT 0702R12T-FF
Length0.3370
Length range0.3200 to 0.4000
Manufacturers catalog numberHP ANKT 0702R12T-FF IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.0280
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width0.1730
