H690 TNKX 100504PNTR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5607748

MFR# 5607748ISO/ANSI# H690 TNKX 100504PNTRCat# H690 TNKX 100504PNTR IC830Series HELIDO

$29.52List $37.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

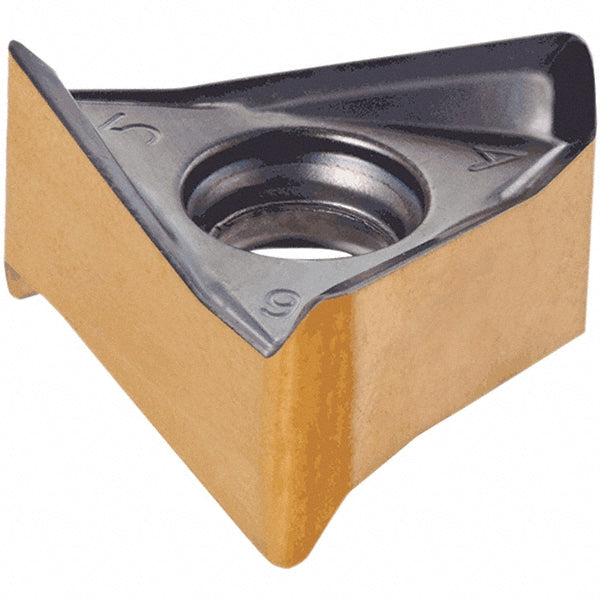

The Iscar 5607748 is a H690 TNKX 100504PNTR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH690 TNKX 100504PNTR IC830
Chip breakerPNTR
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityH690-10
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree60
Inscribed circle0.2441
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size10
Insert size code100504
Insert styleTNKX
Iso codeH690 TNKX 100504PNTR
Length0.3340
Length range0.3200 to 0.4000
Manufacturers catalog numberH690 TNKX 100504PNTR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1850
Thickness range0.1850 to 0.2000
Width0.3340
