Iscar

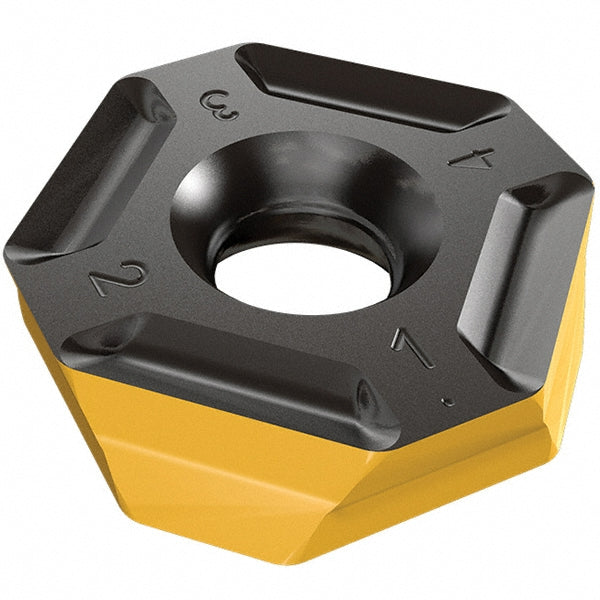

IQ845 SYHU 0503ADN-MM Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5607764
MFR# 5607764ISO/ANSI# IQ845 SYHU 0503ADN-MMCat# IQ845 SYHU 0503ADN-MM IC808Series DOVEIQMILL
$26.54List $34.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5607764 is a IQ845 SYHU 0503ADN-MM solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeIQ845 SYHU 0503ADN-MM IC808
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityIQ845
Cutting edge effective length0.3071
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.3268
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size05
Insert size code0503
Insert styleSYHU
Iso codeIQ845 SYHU 0503ADN-MM
Length0.3268
Length range0.3200 to 0.4000
Manufacturers catalog numberIQ845 SYHU 0503ADN-MM IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.1020
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1180
Thickness range0.1000 to 0.1250
Width0.3268
