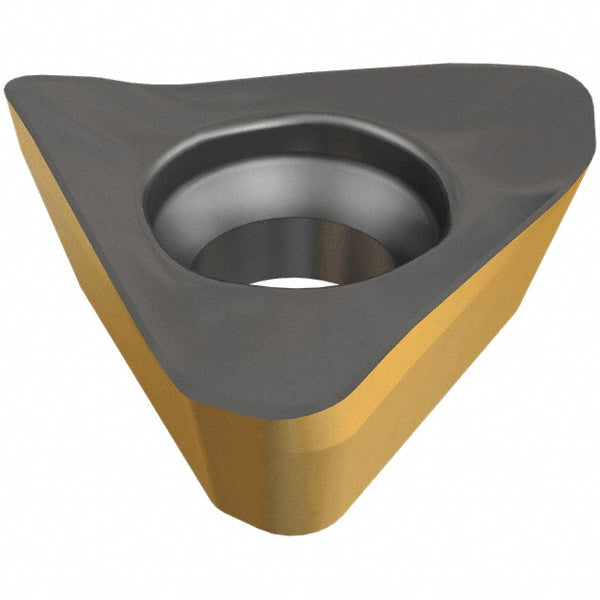

HM390 TCKT 0703PCTR Solid Carbide Insert, Grade IC5400, TiCN - Iscar 5607771

Iscar

HM390 TCKT 0703PCTR Solid Carbide Insert, Grade IC5400, TiCN - Iscar 5607771

MFR# 5607771ISO/ANSI# HM390 TCKT 0703PCTRCat# HM390 TCKT 0703PCTR IC5400Series HELI3MILL

$18.66List $23.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeIC5400
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5607771 is a HM390 TCKT 0703PCTR solid carbide indexable insert, grade IC5400, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeHM390 TCKT 0703PCTR IC5400
Chip breakerPCTR
Coating finishTiCN
Coating processMTCVD
Corner radius0.0197
Cutter series compatibilityHM390-07
Cutting edge effective length0.1970
Cutting edge styleHelical
Included angle degree60
Inscribed circle0.2283
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size07
Insert size code0703
Insert styleTCKT
Iso codeHM390 TCKT 0703PCTR
Length0.3070
Length range0.0000 to 0.3200
Manufacturers catalog numberHM390 TCKT 0703PCTR IC5400
Manufacturer gradeIC5400
Material applicationSteel; Stainless Steel
Maximum depth of cut0.1970
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1240
Thickness range0.1000 to 0.1250
Width0.3070
