Iscar

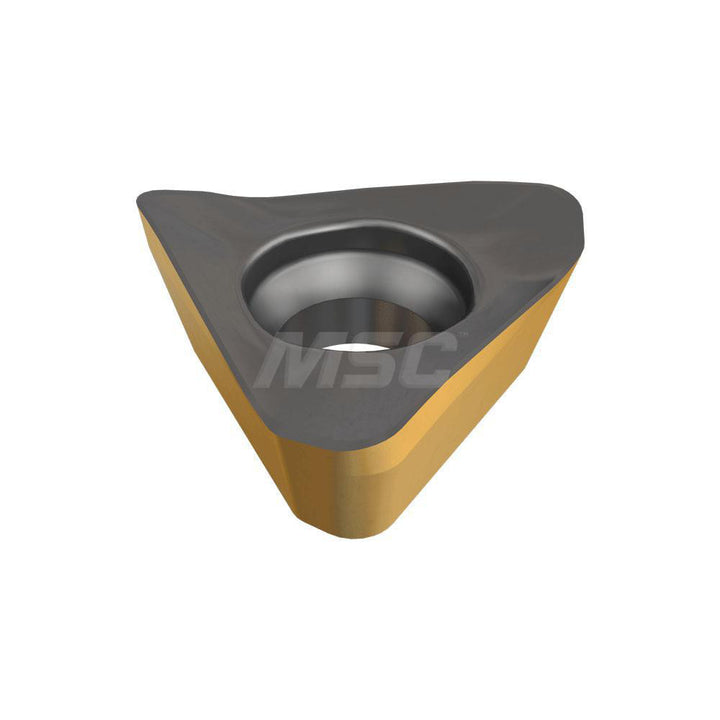

HM390 TCKT 0703PCTR Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5607772
MFR# 5607772ISO/ANSI# HM390 TCKT 0703PCTRCat# HM390 TCKT 0703PCTR IC810Series HELI3MILL
$18.99List $23.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN
Description
The Iscar 5607772 is a HM390 TCKT 0703PCTR solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.
Specifications
Ansi codeHM390 TCKT 0703PCTR IC810
Chip breakerPCTR
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHM390-07
Cutting edge effective length0.1970
Cutting edge styleHelical
Included angle degree60
Inscribed circle0.2283
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size07
Insert size code0703
Insert styleTCKT
Iso codeHM390 TCKT 0703PCTR
Length0.3070
Length range0.0000 to 0.3200
Manufacturers catalog numberHM390 TCKT 0703PCTR IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.1970
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1240
Thickness range0.1000 to 0.1250
Width0.3070
