Iscar

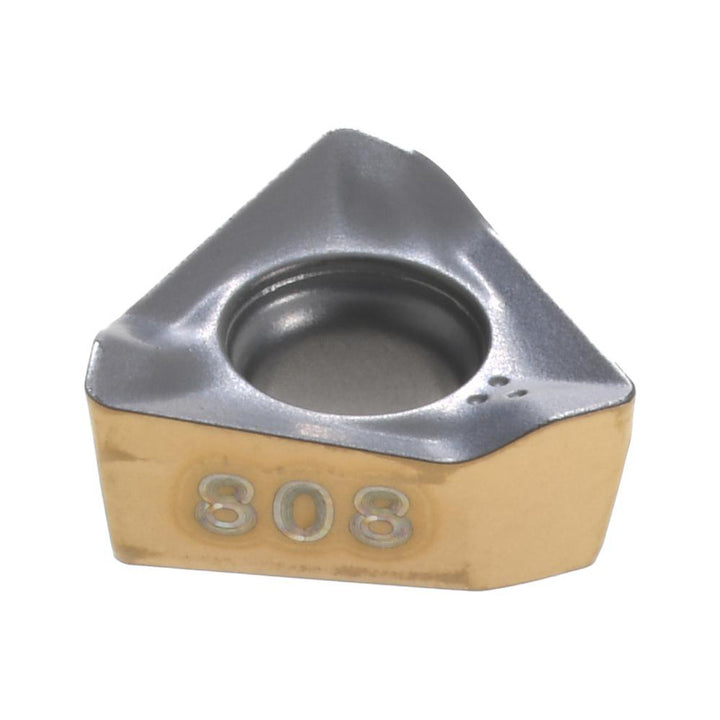

HM390 TCKT 0703PCTR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5607773
MFR# 5607773ISO/ANSI# HM390 TCKT 0703PCTRCat# HM390 TCKT 0703PCTR IC808Series HELI3MILL
$18.66List $23.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5607773 is a HM390 TCKT 0703PCTR solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeHM390 TCKT 0703PCTR IC808
Chip breakerPCTR
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHM390-07
Cutting edge effective length0.1970
Cutting edge styleHelical
Included angle degree60
Inscribed circle0.2283
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size07
Insert size code0703
Insert styleTCKT
Iso codeHM390 TCKT 0703PCTR
Length0.3070
Length range0.0000 to 0.3200
Manufacturers catalog numberHM390 TCKT 0703PCTR IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.1970
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1240
Thickness range0.1000 to 0.1250
Width0.3070
