Iscar

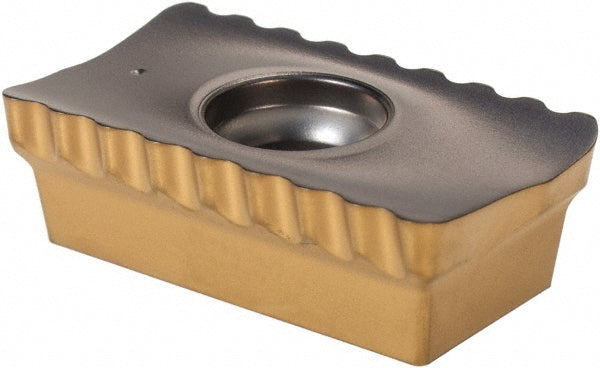

P290 ACKT 1806PDR-FW Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5607795
MFR# 5607795ISO/ANSI# P290 ACKT 1806PDR-FWCat# P290 ACKT 1806PDR-FW IC808Series MILLSHRED
$29.75List $38.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5607795 is a P290 ACKT 1806PDR-FW solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeP290 ACKT 1806PDR-FW IC808
Chip breakerFW
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityP290
Cutting edge effective length0.7090
Cutting edge styleSegmented
Included angle degree85
Inscribed circle0.4210
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1806
Insert styleACKT
Iso codeP290 ACKT 1806PDR-FW
Length0.7280
Length range0.7000 to 0.9000
Manufacturers catalog numberP290 ACKT 1806PDR-FW IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.7090
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.4210
