0.0591" 3-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620354

Iscar

0.0591" 3-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620354

MFR# 5620354

$42.87List $54.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiAlN

Description

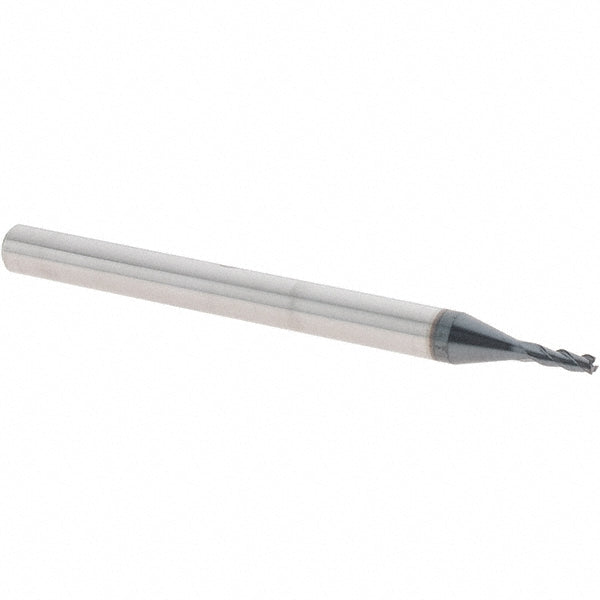

The Iscar 5620354 is a 0.0591 3-flute Solid Carbide (Submicron Grain) square end mill. 0.1575 length of cut.

Specifications

CentercuttingYes
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut0.1575
Length of cut range0.1000 - 0.2000
Length typeRegular
Material gradeSubmicron Grain
Mill diameter0.0591
Mill diameter tolerance-0.014 to 0.028 mm
Number of flutes3
Overall length (mm)50.00
Shank diameter (mm)4.00
Shank diameter tolerance0.000/-0.007 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Kennametal0.0591" 3-Flute Solid Carbide Square End Mill, TiAlN - Kennametal 6146907 $32.62 SGS0.0591" 3-Flute Solid Carbide Square End Mill, AlTiN - SGS 48800 $17.31 OSG0.0591" 3-Flute Solid Carbide Square End Mill, TiAlN - OSG 403-059111 $14.85 M.A. Ford.0.0591" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 16905910 $21.31
