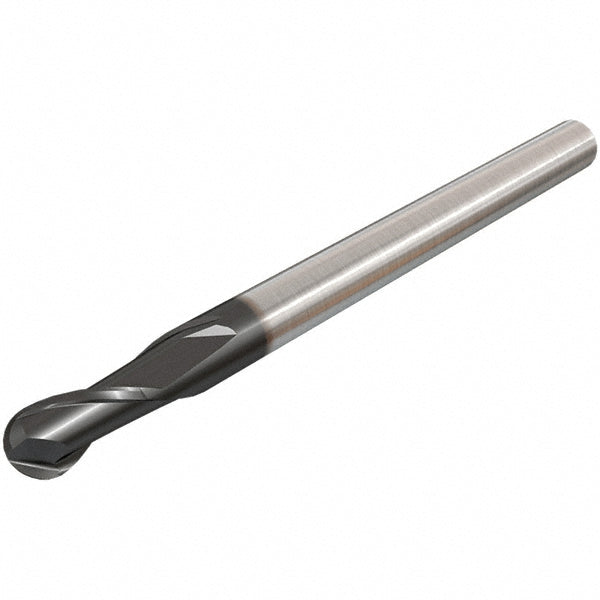

0.2362" 2-Flute Solid Carbide Ball End Mill, TiAlN - Iscar 5620377

Iscar

0.2362" 2-Flute Solid Carbide Ball End Mill, TiAlN - Iscar 5620377

MFR# 5620377Series EB-A-2

$47.95List $61.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5620377 is a 0.2362 2-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. Series EB-A-2.

Specifications

ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut (mm)8.00
Length typeStub
Material gradeSubmicron
Mill diameter0.2362
Mill diameter tolerance-0.025/0.047 mm
Number of flutes2
Overall length (mm)57.00
Shank diameter (mm)6.00
Shank diameter tolerance0.000/-0.009 mm
Single or double endSingle
Variable helixNo
Variable indexNo
