0.2362" 4-Flute Solid Carbide Single End Mill, TiAlN - Iscar 5620458

Iscar

0.2362" 4-Flute Solid Carbide Single End Mill, TiAlN - Iscar 5620458

MFR# 5620458

$42.87List $54.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

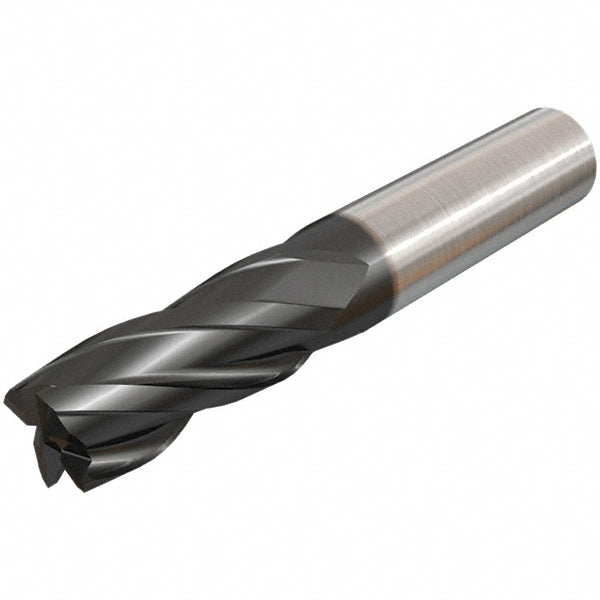

The Iscar 5620458 is a 0.2362 4-flute Solid Carbide (IC900) single end mill with a TiAlN finish for longer tool life.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.6299
Length typeRegular
Material gradeIC900
Maximum helix angle30
Mill diameter0.2362
Mill diameter tolerance-0.025 to 0.047 mm
Number of flutes4
Overall length (mm)57.00
Shank diameter0.2362
Shank diameter tolerance0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
