Iscar

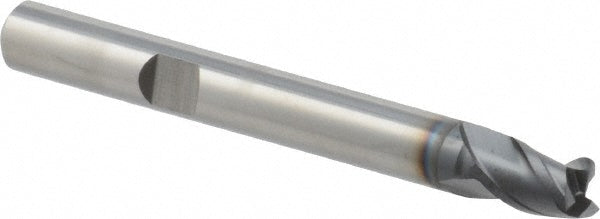

0.2244" 3-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620515
MFR# 5620515
$31.55List $40.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5620515 is a 0.2244 3-flute Solid Carbide (Submicron Grain) square end mill. 0.2756 length of cut.
Specifications
CentercuttingYes
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut0.2756
Length of cut range0.2000 - 0.3000
Length typeStub
Material gradeSubmicron Grain
Mill diameter0.2244
Mill diameter tolerance-0.020 to 0.038 mm
Number of flutes3
Overall length (mm)57.00
Shank diameter (mm)6.00
Shank diameter tolerance0.000/-0.008 mm
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
