Iscar

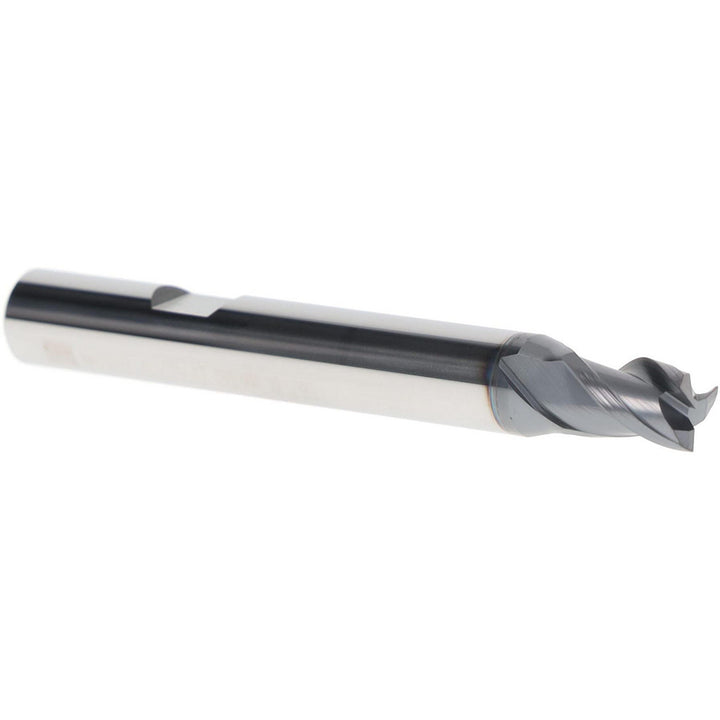

0.2638" 3-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620516
MFR# 5620516
$58.95List $75.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5620516 is a 0.2638 3-flute Solid Carbide (IC900) square end mill. 0.3150 length of cut.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut0.3150
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeIC900
Mill diameter0.2638
Mill diameter tolerance-0.025 to 0.047 mm
Number of flutes3
Overall length (mm)63.00
Shank diameter0.3150
Shank diameter tolerance0.000/-0.009 mm
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
