Iscar

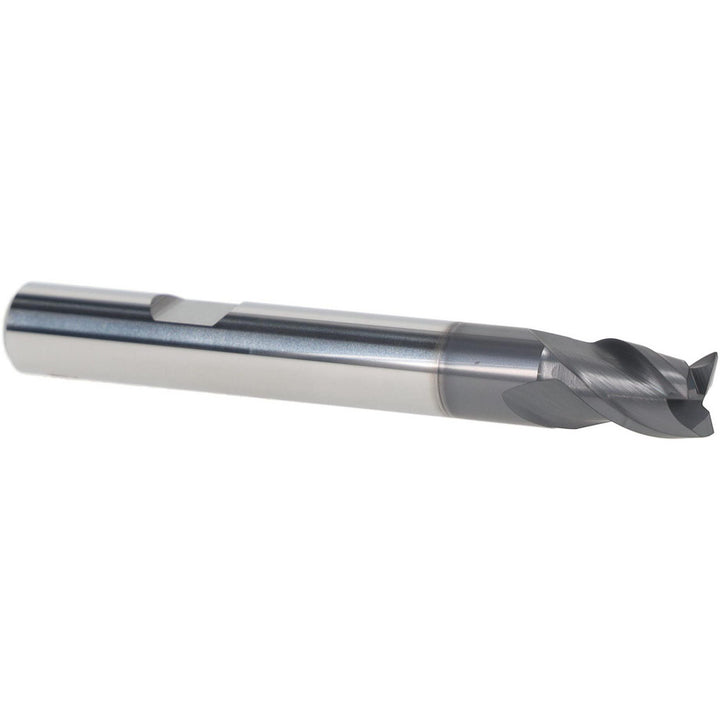

0.3031" 3-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620517
MFR# 5620517
$54.43List $68.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5620517 is a 0.3031 3-flute Solid Carbide (IC900) square end mill. 0.3543 length of cut.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut0.3543
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeIC900
Mill diameter0.3031
Mill diameter tolerance-0.025 to 0.047 mm
Number of flutes3
Overall length (mm)63.00
Shank diameter0.3150
Shank diameter tolerance0.000/-0.009 mm
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
