Iscar
0.4606" 3-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620519
MFR# 5620519
$102.68List $131.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiAlN
Description

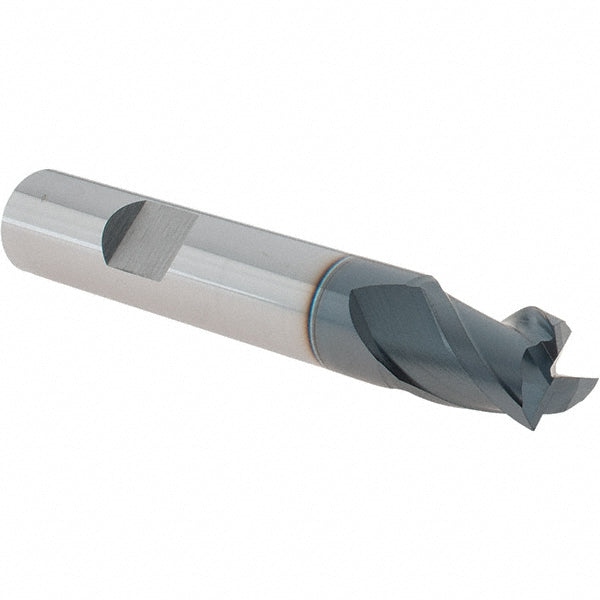

The Iscar 5620519 is a 0.4606 3-flute Solid Carbide (Submicron Grain) square end mill. 0.4724 length of cut.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut0.4724
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeSubmicron Grain
Mill diameter0.4606
Mill diameter tolerance-0.032 to 0.059 mm
Number of flutes3
Overall length (mm)73.00
Shank diameter (mm)12.00
Shank diameter tolerance0.000/-0.011 mm
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
