Iscar

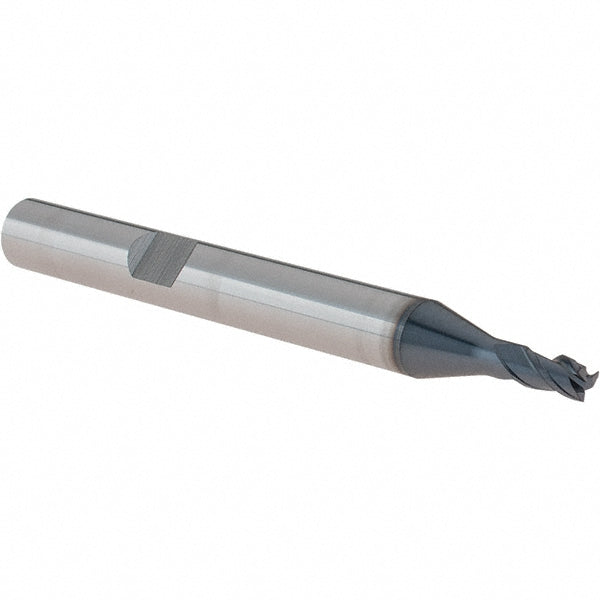

0.1181" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5620530

MFR# 5620530Cat# ECS030E04-3W06-57Series ECS-E-3

$44.59List $57.10 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The Iscar 5620530 is a 0.1181 3-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for stainless steel, superalloys & titanium. Series ECS-E-3.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle38

Helix styleMedium

Length of cut0.1575

Length typeShort

Manufacturers catalog numberECS030E04-3W06-57

Material gradeIC900

Material removal typeRoughing & Finishing

Mill diameter0.1181

Mill diameter tolerance-0.020 to 0.038

Neck diameter0.1142

Number of flutes3

Overall length (mm)57.00

PitchNormal

Primary workpiece materialStainless Steel; Superalloys & Titanium

Reach length0.3543

Shank diameter (mm)6.00

Shank diameter tolerance0.000 to -0.008 mm

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
