M.A. Ford.

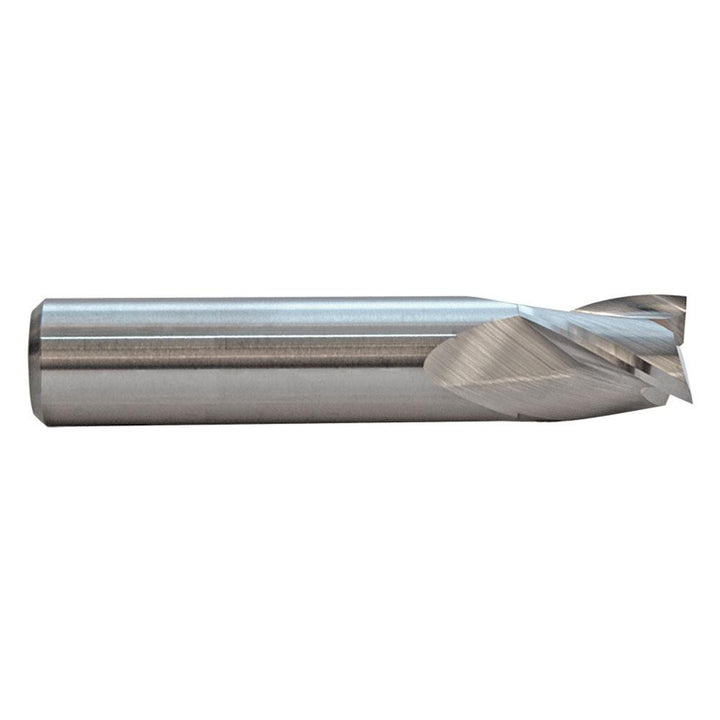

0.1181" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 16911810
MFR# 16911810Series 169
$17.73List $22.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
Description
The M.A. Ford. 16911810 is a 0.1181 3-flute Solid Carbide (Micrograin) square end mill. 0.2362 length of cut. Series 169.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.2362
Length of cut range0.2000 - 0.3000
Length typeStub
Material gradeMicrograin
Mill diameter0.1181
Mill diameter tolerance+0.000/-0.040 mm
Number of flutes3
Overall length (mm)38
Shank diameter0.1181
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
