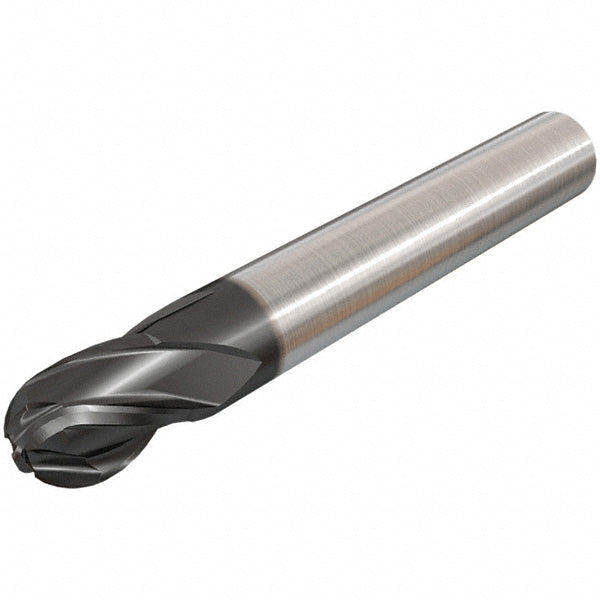

0.1181" 4-Flute Solid Carbide Ball End Mill, TiAlN - Iscar 5620659

Iscar

0.1181" 4-Flute Solid Carbide Ball End Mill, TiAlN - Iscar 5620659

MFR# 5620659Series EB-A-4

$50.28List $64.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5620659 is a 0.1181 4-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. Series EB-A-4.

Specifications

ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut (mm)5.00
Length typeStub
Material gradeSubmicron
Mill diameter0.1181
Mill diameter tolerance-0.020 to 0.038 mm
Number of flutes4
Overall length (mm)38.00
Shank diameter (mm)3.00
Shank diameter tolerance0.000 to -0.008 mm
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG0.1181" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG HP441-1181-BN $21.99 SGS0.1181" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 48611 $17.87 OSG0.1181" 4-Flute Solid Carbide Ball End Mill - OSG 404-1181-BN $12.63 OSG0.1181" 4-Flute Solid Carbide Square End Mill, DUROREY - OSG 8549730 $76.59
