Iscar

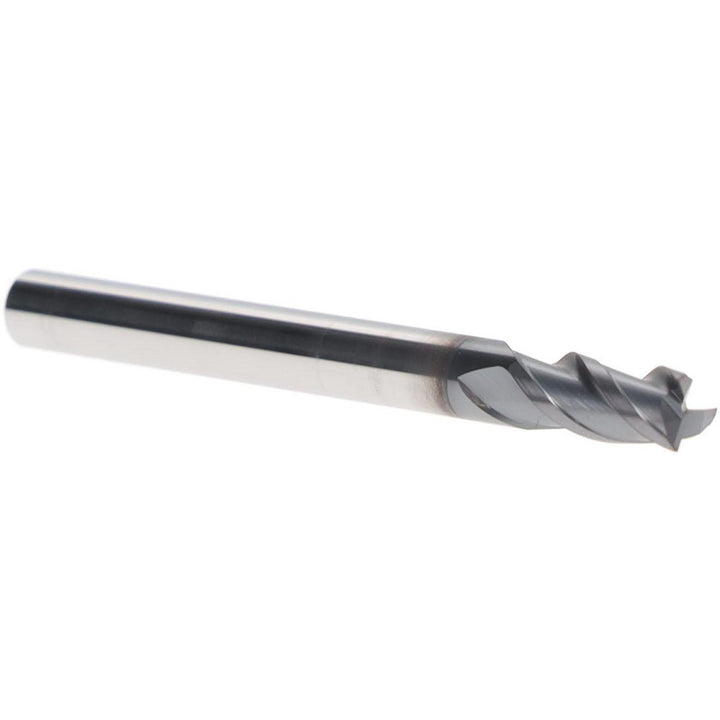

3/16" 3-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620887
MFR# 5620887
$42.87List $54.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5620887 is a 3/16 3-flute Solid Carbide (IC900) square end mill with a TiAlN finish for longer tool life. 3/8 length of cut, 2 overall length.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeIC900
Mill diameter in3/16
Number of flutes3
Overall length in2
Shank diameter in3/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
