Iscar

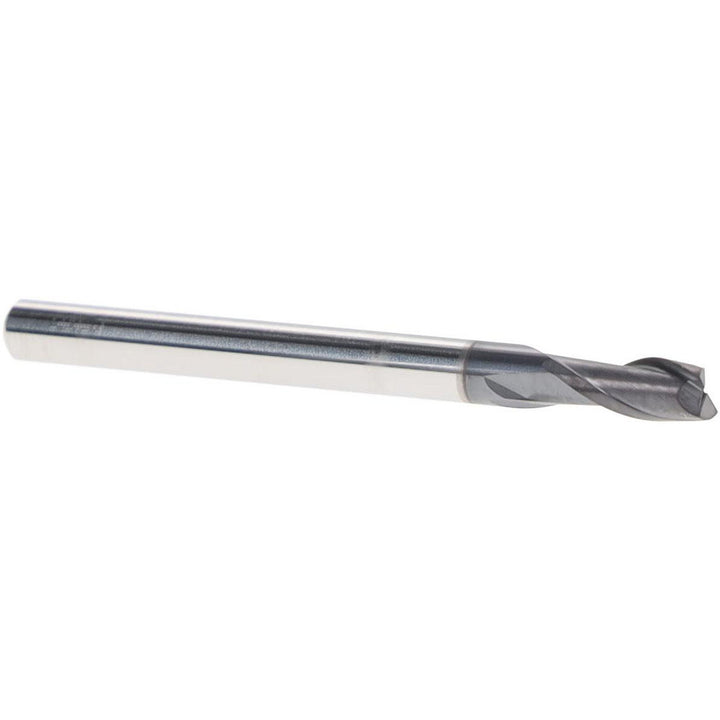

1/8" 2-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620905
MFR# 5620905
$38.50List $49.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes2
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5620905 is a 1/8 2-flute Solid Carbide (IC900) square end mill. 1/4 length of cut, 1-1/2 overall length.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/4
Length of cut range0.2000 - 0.3000
Material gradeIC900
Mill diameter in1/8
Number of flutes2
Overall length in1-1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
