Iscar

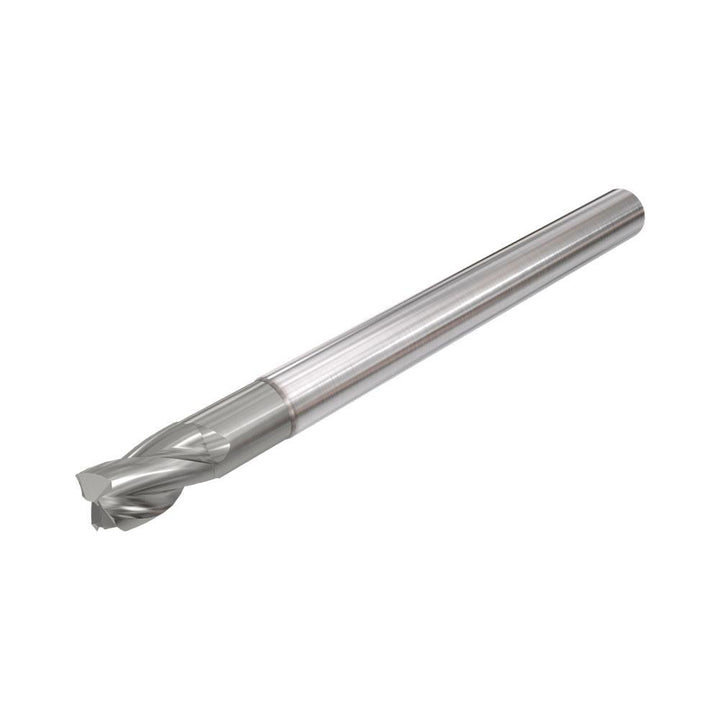

5/8" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5620948

MFR# 5620948Cat# ECSI-E-3 625-687-C625Series ECSI-E-3

$151.56List $194.10 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The Iscar 5620948 is a 5/8 3-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 11/16 length of cut, 3-1/2 overall length. Series ECSI-E-3.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle38

Helix styleMedium

Length of cut in11/16

Length typeShort

Manufacturers catalog numberECSI-E-3 625-687-C625

Material gradeIC900

Material removal typeRoughing & Finishing

Mill diameter in5/8

Neck diameter0.5900

Number of flutes3

Overall length in3-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length in1-1/4

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in5/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
