Iscar

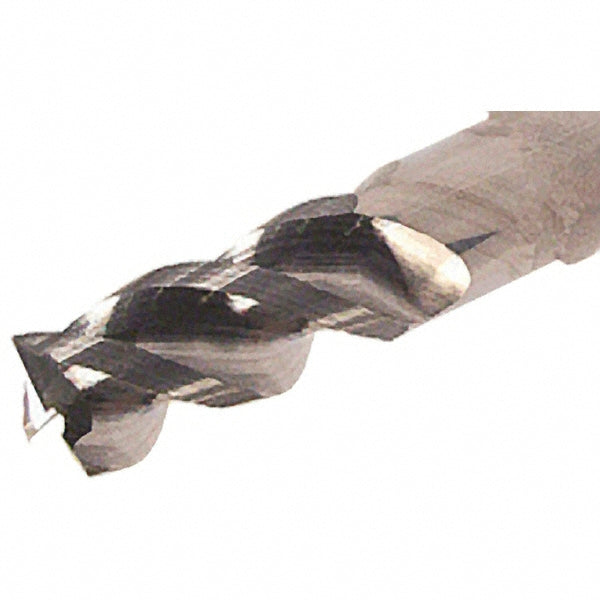

5/8" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5622913

MFR# 5622913Series ECAI-H3-CF

$378.39List $484.60 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The Iscar 5622913 is a 5/8 3-flute Solid Carbide (Fine Grain) corner radius end mill. Suited for non-ferrous metal. 1 length of cut, 5 overall length. Series ECAI-H3-CF.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleVariable

Length of cut in1

Length typeShort

Material applicationNon-Ferrous Metal

Material gradeFine Grain

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter toleranceh6

Number of flutes3

Overall length in5

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in3-1/8

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
