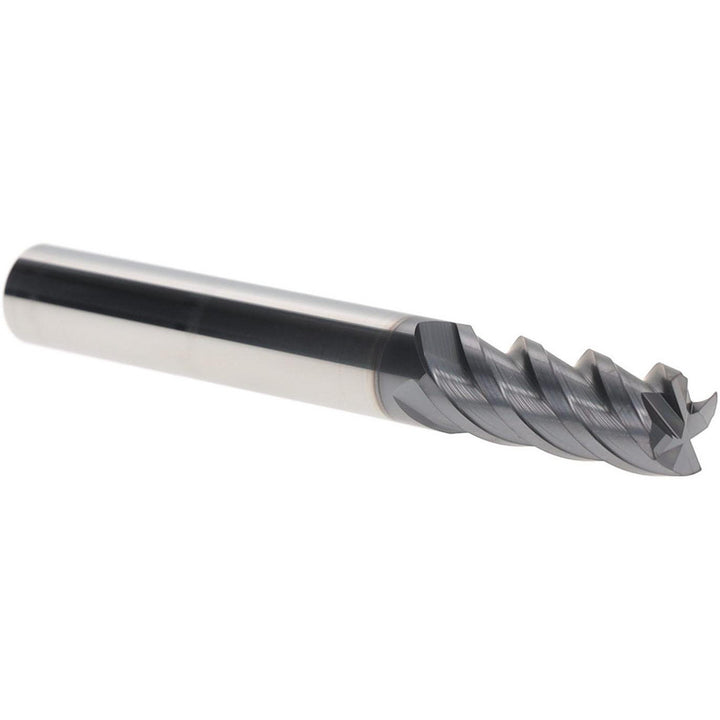

3/8" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620954

Iscar

3/8" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620954

MFR# 5620954

$91.04List $116.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5620954 is a 3/8 4-flute Solid Carbide (IC900) square end mill. 0.8700 length of cut, 2-1/2 overall length.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut0.8700
Length of cut range0.8000 - 1.0000
Length typeRegular
Material gradeIC900
Mill diameter in3/8
Number of flutes4
Overall length in2-1/2
Reach length0.8750
Shank diameter in3/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
