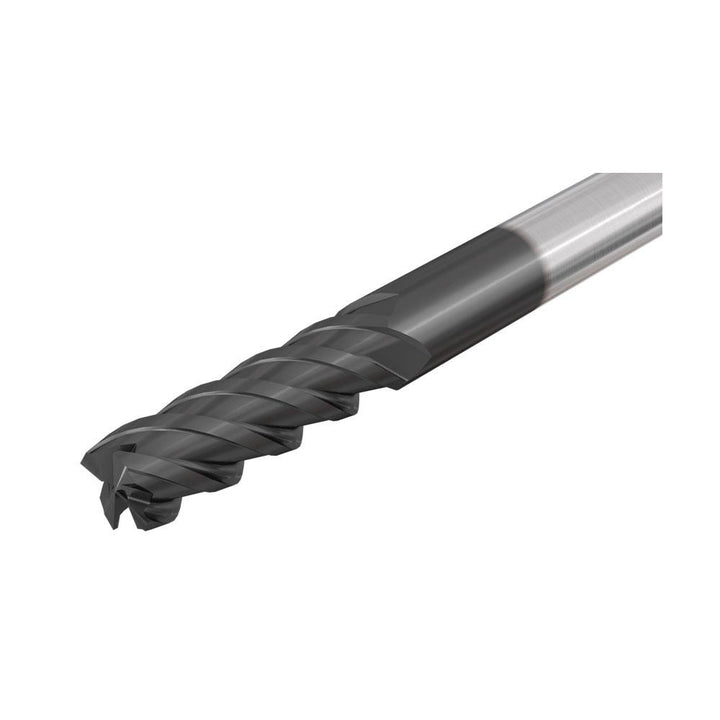

5/8" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620957

Iscar

5/8" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620957

MFR# 5620957

$207.71List $266.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5620957 is a 5/8 4-flute Solid Carbide (IC900) square end mill with a TiAlN finish for longer tool life. 1-1/4 length of cut, 3-1/2 overall length.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeIC900
Mill diameter in5/8
Number of flutes4
Overall length in3-1/2
Reach length1.25
Shank diameter in5/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
