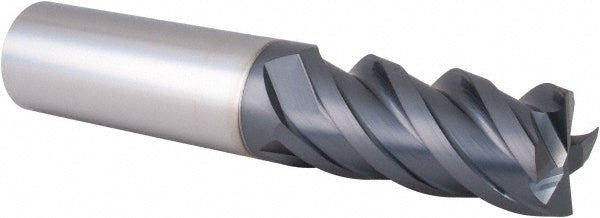

3/4" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620958

Iscar

3/4" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620958

MFR# 5620958

$342.98List $431.60 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5620958 is a 3/4 4-flute Solid Carbide (Submicron Grain) square end mill. 1-1/2 length of cut, 4 overall length.

Specifications

CentercuttingYes
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeSubmicron Grain
Mill diameter in3/4
Number of flutes4
Overall length in4
Reach length1.5000
Shank diameter in3/4
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
