Iscar

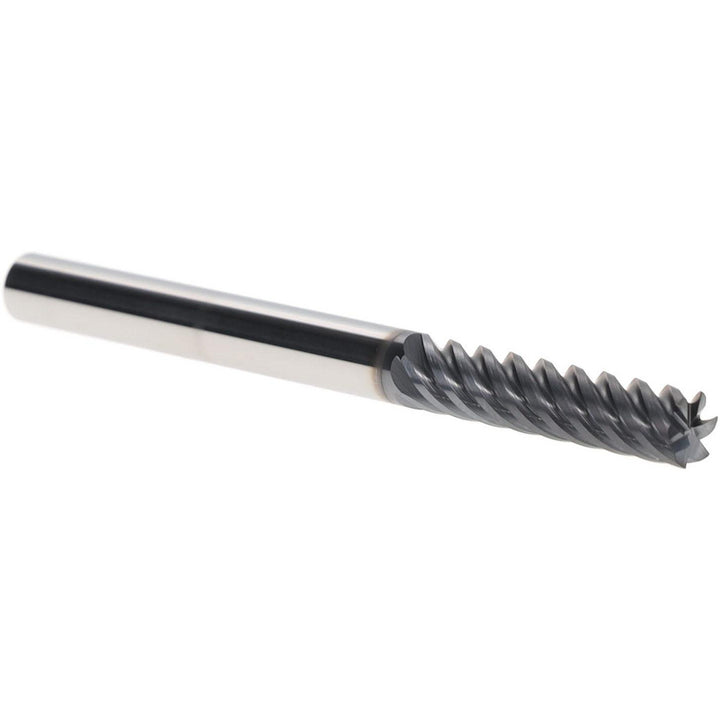

1/4" 6-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620961
MFR# 5620961
$68.32List $87.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes6
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5620961 is a 1/4 6-flute Solid Carbide (IC900) square end mill. 1 length of cut, 3 overall length.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeLong
Material gradeIC900
Mill diameter in1/4
Number of flutes6
Overall length in3
Reach length1.0000
Shank diameter in1/4
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
