Iscar

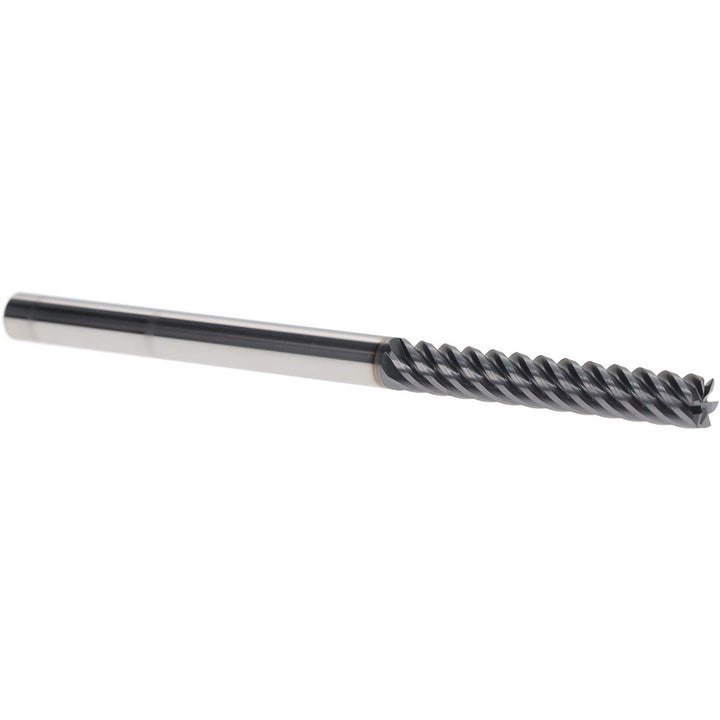

1/4" 6-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620970
MFR# 5620970
$82.54List $105.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes6
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5620970 is a 1/4 6-flute Solid Carbide (IC900) square end mill. 1-1/2 length of cut, 4 overall length.
Specifications
CentercuttingYes
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/2
Length typeExtra Long
Material gradeIC900
Mill diameter in1/4
Number of flutes6
Overall length in4
Reach length1.5000
Shank diameter in1/4
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
