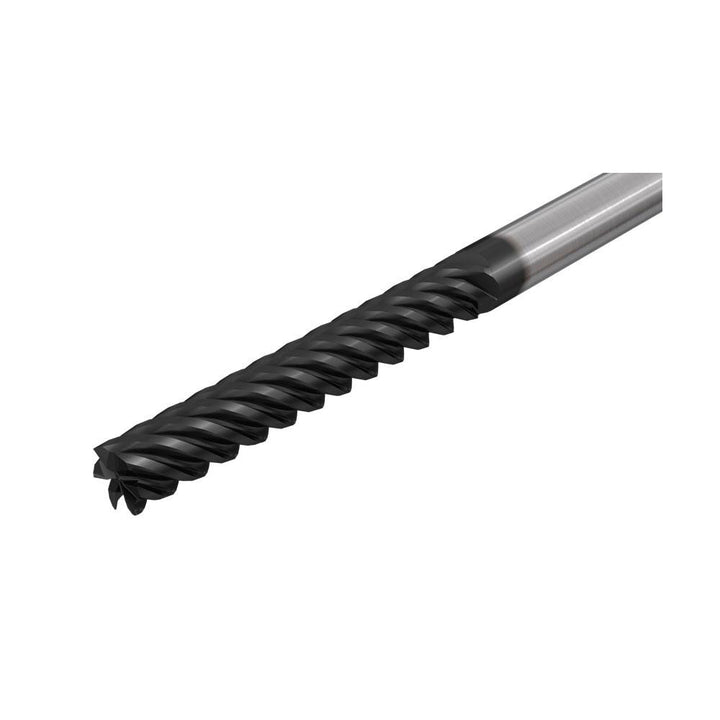

5/16" 6-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620971

Iscar

5/16" 6-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620971

MFR# 5620971

$134.85List $172.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes6
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5620971 is a 5/16 6-flute Solid Carbide (Submicron Grain) square end mill. 1-7/8 length of cut, 4 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-7/8
Length of cut range1.5000 - 2.0000
Length typeExtra Long
Material gradeSubmicron Grain
Mill diameter in5/16
Number of flutes6
Overall length in4
Reach length1.8800
Shank diameter in5/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
