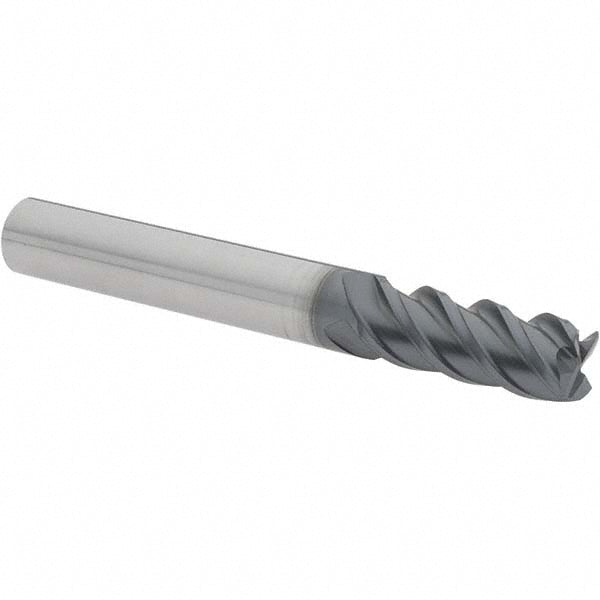

0.3150in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Iscar 5621084

Iscar

0.3150in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Iscar 5621084

MFR# 5621084Series EC-B-4/4R

$77.30List $99.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5621084 is a 0.3150in 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series EC-B-4/4R.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0197
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut0.6250in
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter0.3150in
Mill diameter tolerancee8
Number of flutes4
Overall length (mm)63.00mm
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter (mm)8.00mm
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
