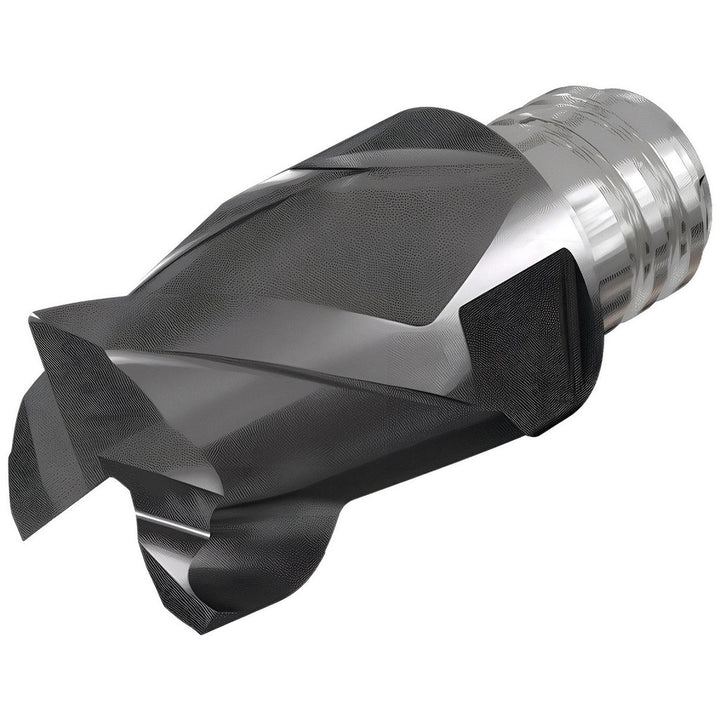

Carbide Insert, Grade IC908, TiAlN - Iscar 5621359

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5621359

MFR# 5621359Series MM ECU

$67.70List $86.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeIC908
CoatingTiAlN

Description

The Iscar 5621359 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0079
Cutting diameter0.3030
Cutting width0.3030in
Extension from holder in0.3937
Functional length0.3940
Helix angle38
Included angle degree90
Insert handRight Hand
Insert size077E04R020
Lead angle90
Length of cut0.1570in
Manufacturers catalog number5621359
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.1570
Milling tip full descriptionMM ECU077E04R020-3T05
Milling tip styleMM ECU
Milling tip typeKeyway
Number of flutes3
Overall length0.3940in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
