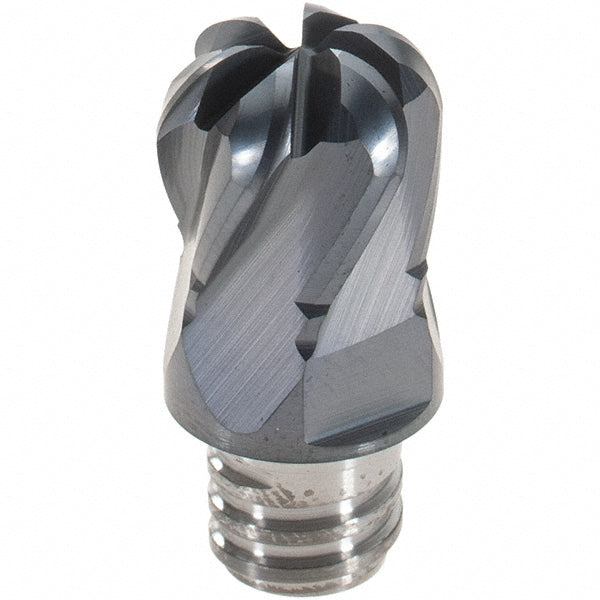

Carbide Insert, Grade IC908, TiAlN - Iscar 5621365

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5621365

MFR# 5621365Series MM ETR

$128.53List $164.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
GradeIC908
CoatingTiAlN

Description

The Iscar 5621365 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1576
Cutting diameter0.4728
Cutting width0.4728in
Extension from holder in0.6496
Functional length0.6501
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size120A07R4.0
Lead angle90
Length of cut0.3546in
Manufacturers catalog number5621365
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3546
Milling tip full descriptionMM ETR120A07R4.0-6T08
Milling tip styleMM ETR
Milling tip typeToroidal
Number of flutes6
Overall length0.6501in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
