Iscar
Carbide Insert, Grade IC908, TiAlN - Iscar 5621377
MFR# 5621377Series MM EB
$80.26List $102.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN
Description

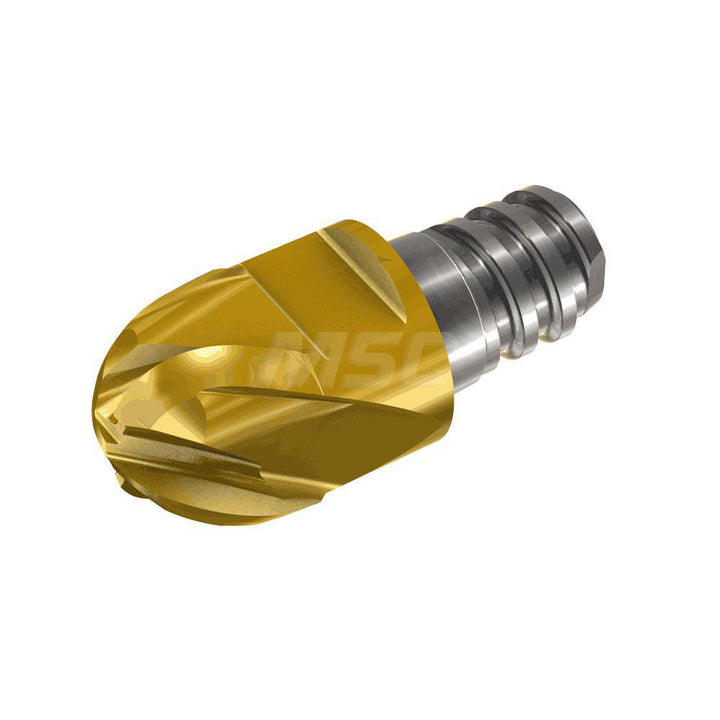

The Iscar 5621377 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1600
Cutting diameter0.3120
Cutting width0.312
Extension from holder in0.3500
Functional length0.3500
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size.312A20
Lead angle90
Length of cut0.2000
Manufacturers catalog number5621377
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2000
Milling tip full descriptionMM EB.312A20-4T05
Milling tip styleMM EB
Milling tip typeBall Nose
Number of flutes4
Overall length0.35
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
