Iscar

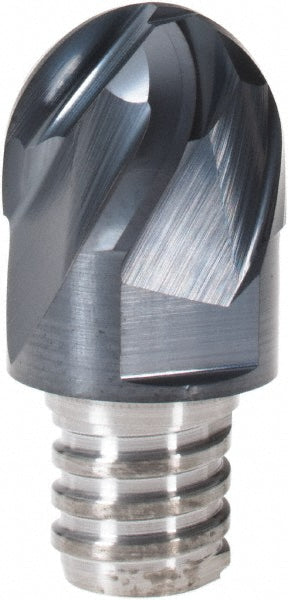

Carbide Insert, Grade IC908, TiAlN - Iscar 5621379
MFR# 5621379Series MM EB
$182.85List $230.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN
Description
The Iscar 5621379 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.3100
Cutting width0.6250in
Extension from holder in0.8000
Functional length0.8000
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size.625A47
Lead angle90
Length of cut0.4700in
Manufacturers catalog number5621379
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.4700
Milling tip full descriptionMM EB.625A47-4T10
Milling tip styleMM EB
Milling tip typeBall Nose
Number of flutes4
Overall length0.8000in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
