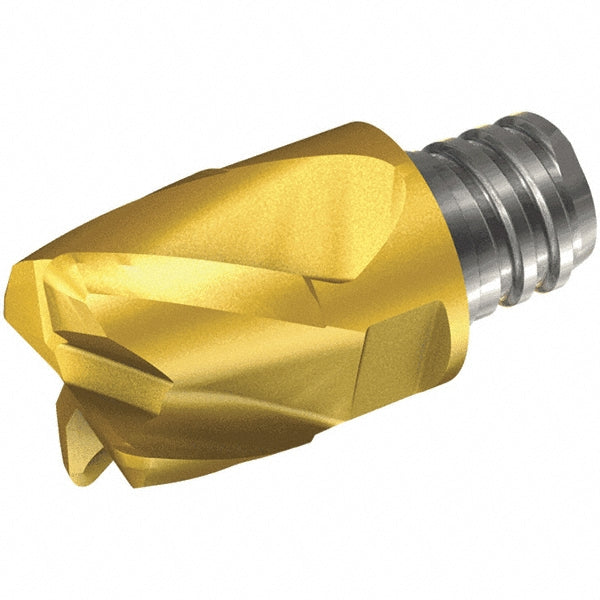

Carbide Insert, Grade IC908, TiAlN - Iscar 5621381

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5621381

MFR# 5621381Series MM EC-4

$71.68List $91.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5621381 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.3120
Cutting width0.3120in
Extension from holder in0.3900
Functional length0.3900
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.312B20R000
Lead angle90
Length of cut0.2000in
Manufacturers catalog number5621381
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2000
Milling tip full descriptionMM EC.312B20R000-4T05
Milling tip styleMM EC-4
Milling tip typeEnd
Number of flutes4
Overall length0.3900in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
