Carbide Insert, Grade IC908, TiAlN - Iscar 5621388

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5621388

MFR# 5621388Series MM ECF

$111.58List $142.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

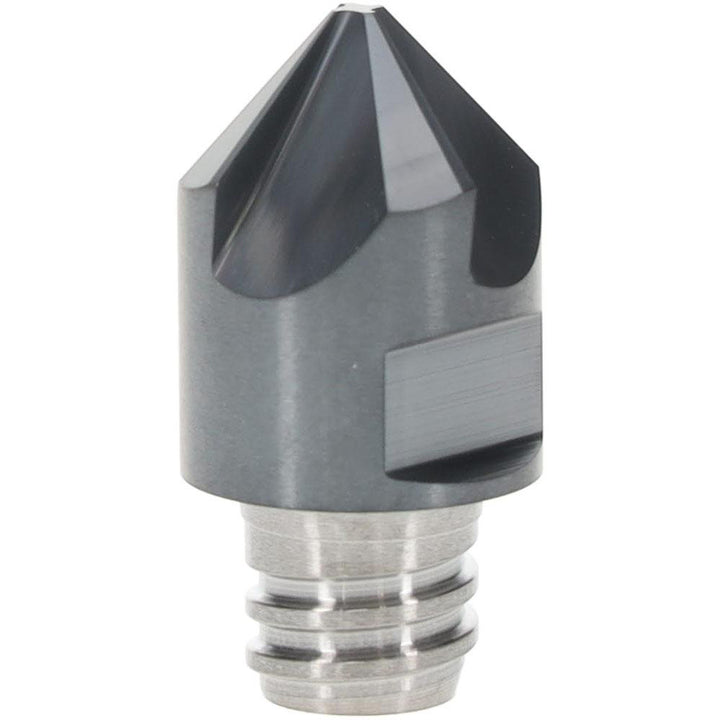

The Iscar 5621388 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.0770
Cutting width0.0770in
Extension from holder in0.6500
Functional length0.6500
Included angle degree60
Insert handRight Hand
Insert size45-.500
Lead angle90
Length of cut0.1970in
Manufacturers catalog number5621388
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.1970
Milling tip full descriptionMM ECF45-.500-4T08
Milling tip styleMM ECF
Milling tip typeChamfer
Number of flutes4
Overall length0.6500in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
