Iscar

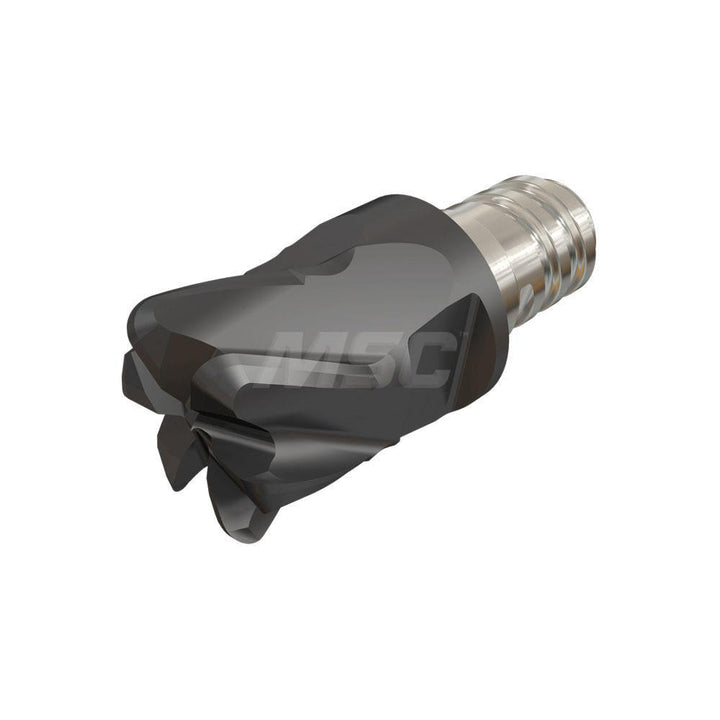

Carbide Insert, Grade IC908, TiAlN - Iscar 5621395
MFR# 5621395Series MM ETR
$91.23List $114.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
GradeIC908
CoatingTiAlN
Description
The Iscar 5621395 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0780
Cutting diameter0.3120
Cutting width0.3120in
Extension from holder in0.3900
Functional length0.3900
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size.312A16R078
Lead angle90
Length of cut0.1600in
Manufacturers catalog number5621395
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.1600
Milling tip full descriptionMM ETR.312A16R078-6T05 90
Milling tip styleMM ETR
Milling tip typeToroidal
Number of flutes6
Overall length0.3900in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
