Carbide Insert, Grade IC908, TiAlN - Iscar 5621396

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5621396

MFR# 5621396Series MM ETR

$101.35List $129.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
GradeIC908
CoatingTiAlN

Description

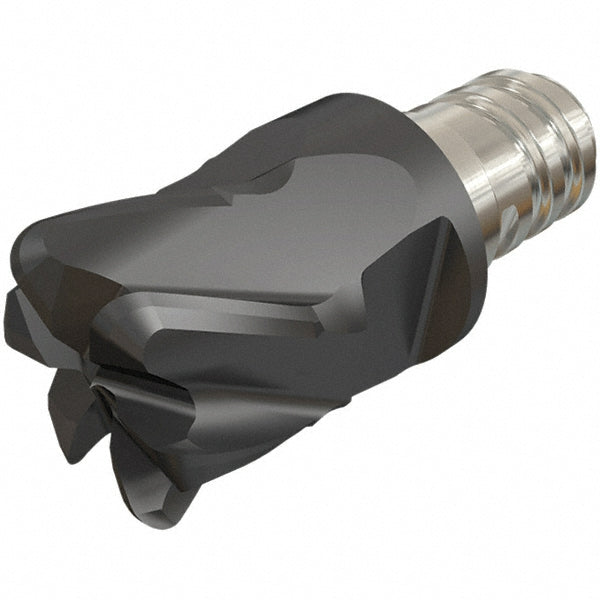

The Iscar 5621396 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.1250
Cutting width0.3750in
Extension from holder in0.5100
Functional length0.5100
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size.375A19R125
Lead angle90
Length of cut0.1900in
Manufacturers catalog number5621396
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.1900
Milling tip full descriptionMM ETR.375A19R125-6T06 90
Milling tip styleMM ETR
Milling tip typeToroidal
Number of flutes6
Overall length0.5100in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
