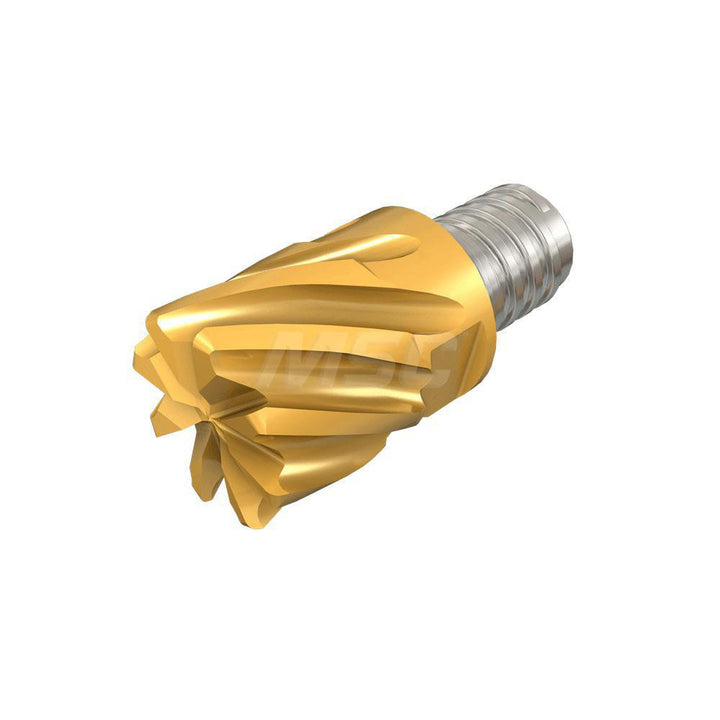

Carbide Insert, Grade IC908, TiAlN - Iscar 5621398

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5621398

MFR# 5621398Series MM EC-8/10

$205.35List $263.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes8
GradeIC908
CoatingTiAlN

Description

The Iscar 5621398 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting width0.6250in
Extension from holder in0.8100
Functional length0.8100
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size.625A47R000
Lead angle90
Length of cut0.4700in
Manufacturers catalog number5621398
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.4700
Milling tip full descriptionMM EC.625A47R000-8T10
Milling tip styleMM EC-8/MM EC-10
Milling tip typeEnd
Number of flutes8
Overall length0.8100in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
