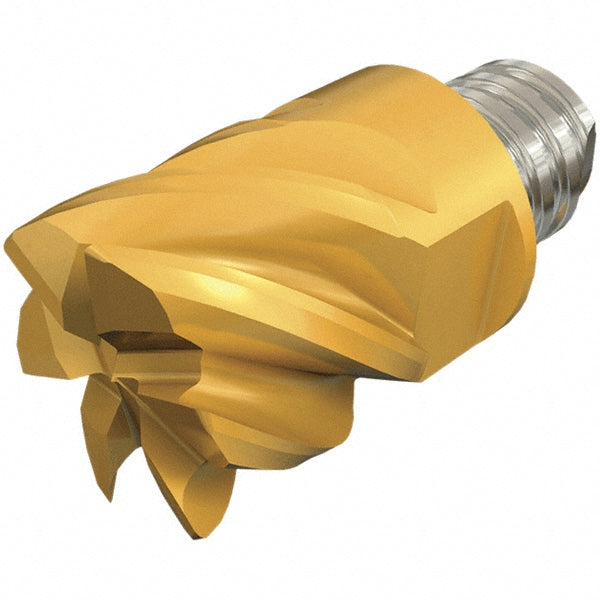

Carbide Insert, Grade IC908, TiAlN - Iscar 5621402

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5621402

MFR# 5621402Series MM EC-6

$82.61List $105.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
GradeIC908
CoatingTiAlN

Description

The Iscar 5621402 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0150
Cutting diameter0.3120
Cutting width0.3120in
Extension from holder in0.3900
Functional length0.3940
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size.312A20R015
Lead angle90
Length of cut0.2000in
Manufacturers catalog number5621402
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2000
Milling tip full descriptionMM EC.312A20R015-6T05
Milling tip styleMM EC-6
Milling tip typeCorner Radius
Number of flutes6
Overall length0.3940in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
