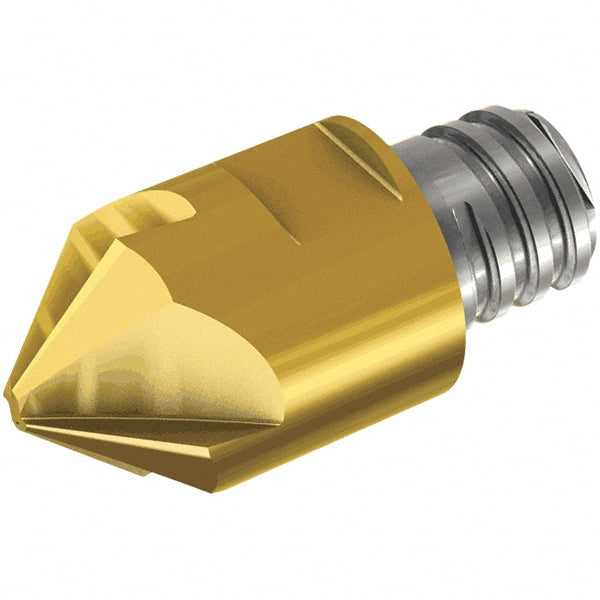

Carbide Insert, Grade IC908, TiAlN - Iscar 5621404

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5621404

MFR# 5621404Series MM ECF

$88.55List $113.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5621404 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.0768
Cutting width0.0768
Functional length0.5122
Included angle degree60
Insert handRight Hand
Insert size45-100
Lead angle90
Length of cut0.1576
Manufacturers catalog number5621404
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.1576
Milling tip full descriptionMM ECF45-100-4T06
Milling tip styleMM ECF
Milling tip typeChamfer
Number of flutes4
Overall length0.5122
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
