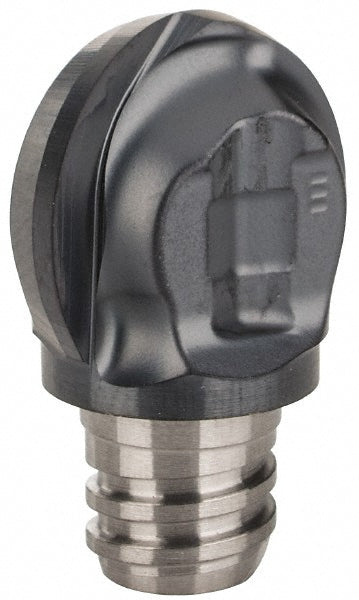

Carbide Insert, Grade IC908, TiAlN - Iscar 5621448

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5621448

MFR# 5621448Series MM HBR

$105.96List $135.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5621448 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.5000
Cutting width0.5000in
Extension from holder in0.4820
Functional length0.4820
Included angle degree90
Insert handRight Hand
Insert size.500
Lead angle90
Manufacturers catalog number5621448
Manufacturer gradeIC908
Material gradeSub Micrograin
Milling tip full descriptionMM HBR.500-2T06
Milling tip styleMM HBR
Milling tip typeSpherical
Number of flutes2
Overall length0.4820in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
