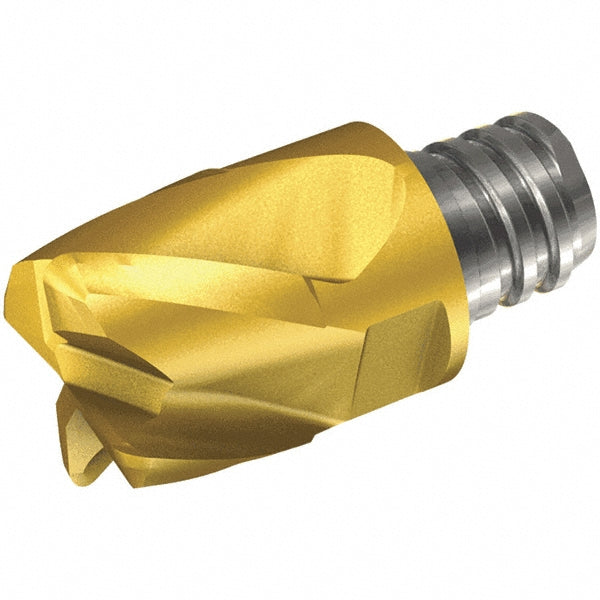

Carbide Insert, Grade IC908, TiAlN - Iscar 5621467

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5621467

MFR# 5621467Series MM EC-4

$81.52List $104.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5621467 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0197
Cutting diameter0.3940
Cutting width0.3940in
Extension from holder in0.5118
Functional length0.5122
Helix angle30
Included angle degree90
Insert handRight Hand
Insert size100A07R0.5
Lead angle90
Length of cut0.2758in
Manufacturers catalog number5621467
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2758
Milling tip full descriptionMM EC100A07R0.5-4T06
Milling tip styleMM EC-4
Milling tip typeEnd
Number of flutes4
Overall length0.5122in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
