Carbide Insert, Grade IC908, TiAlN - Iscar 5621623

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5621623

MFR# 5621623Series MM EC-6

$93.70List $120.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
GradeIC908
CoatingTiAlN

Description

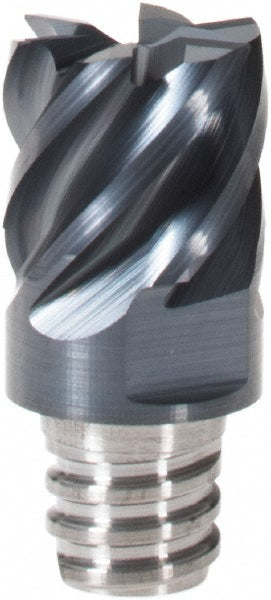

The Iscar 5621623 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting width0.3750in
Extension from holder in0.5120
Functional length0.5120
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.375B27R000
Lead angle90
Length of cut0.2750in
Manufacturers catalog number5621623
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2750
Milling tip full descriptionMM EC.375B27R000-6T06
Milling tip styleMM EC-6
Milling tip typeEnd
Number of flutes6
Overall length0.5120in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
