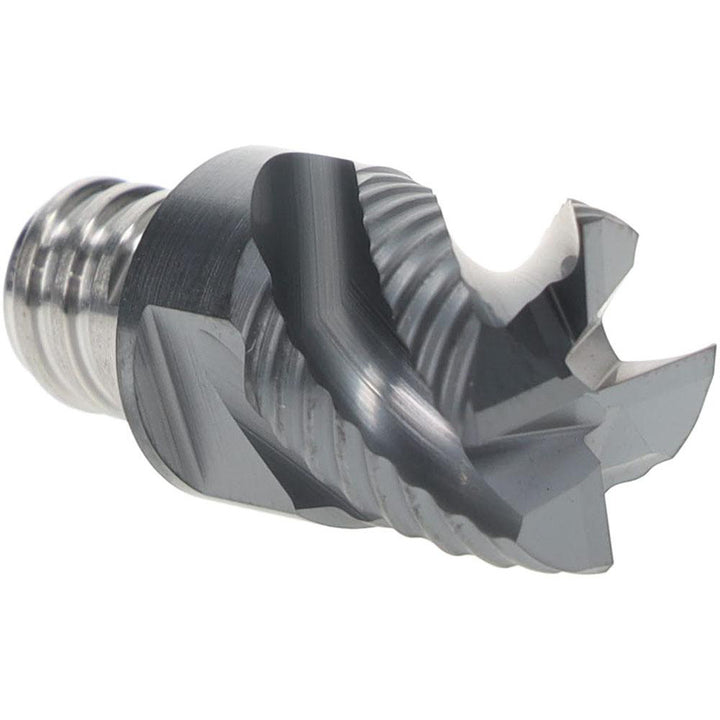

Carbide Insert, Grade IC908, TiAlN - Iscar 5621627

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5621627

MFR# 5621627Series MM ERS

$130.40List $167.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

The Iscar 5621627 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle45degree
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.5000
Cutting diameter (mm)12.70
Cutting width0.5000in
Extension from holder in0.6496
Functional length0.6500
Helix angle45
Included angle degree90
Insert handRight Hand
Insert size.500B37
Lead angle90
Length of cut0.3740in
Manufacturers catalog number5621627
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3740
Milling tip full descriptionMM ERS.500B37-4T08
Milling tip styleMM ERS
Milling tip typeRoughing
Number of flutes4
Overall length0.6500in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
